Philips Hue Binding

This binding integrates the Philips Hue Lighting system. The integration happens through the Hue bridge, which acts as an IP gateway to the ZigBee devices.

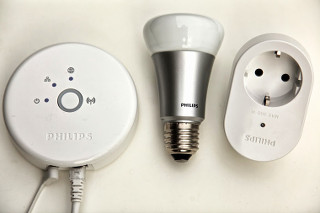

Philips Hue

Supported Things

The Hue bridge is required as a "bridge" for accessing any other Hue device. It supports the ZigBee LightLink protocol as well as the upwards compatible ZigBee 3.0 protocol. There are two types of Hue bridges, generally refered to as v1 (the rounded version) and v2 (the squared version). Only noticable difference between the two generation of bridges is the added support for Apple HomeKit in v2. Both bridges are fully supported by this binding.

Almost all available Hue devices are supported by this binding. This includes not only the "Friends of Hue", but also products like the LivingWhites adapter. Additionally, it is possible to use OSRAM Lightify devices as well as other ZigBee LightLink compatible products, including the IKEA TRÅDFRI lights (when updated). Beside bulbs and luminaires the Hue binding also supports some ZigBee sensors. Currently only Hue specific sensors are tested successfully (Hue Motion Sensor and Hue Dimmer Switch). Please note that the devices need to be registered with the Hue bridge before it is possible for this binding to use them.

The Hue binding supports all seven types of lighting devices defined for ZigBee LightLink (see page 24, table 2. These are:

Device type ZigBee Device ID Thing type
On/Off Light 0x0000 0000
On/Off Plug-in Unit 0x0010 0010
Dimmable Light 0x0100 0100
Dimmable Plug-in Unit 0x0110 0110
Colour Light 0x0200 0200
Extended Colour Light 0x0210 0210
Colour Temperature Light 0x0220 0220

All different models of Hue, OSRAM, or other bulbs nicely fit into one of these seven types. This type also determines the capability of a device and with that the possible ways of interacting with it. The following matrix lists the capabilities (channels) for each type:

Thing type On/Off Brightness Color Color Temperature
0000 X
0010 X
0100 X X
0110 X X
0200 X X
0210 X X X
0220 X X X

Beside bulbs and luminaires the Hue binding supports some ZigBee sensors. Currently only Hue specific sensors are tested successfully (e.g. Hue Motion Sensor, Hue Dimmer Switch, Hue Tap, CLIP Sensor). The Hue Motion Sensor registers a ZLLLightLevel sensor (0106), a ZLLPresence sensor (0107) and a ZLLTemperature sensor (0302) in one device. The Hue CLIP Sensor saves scene states with status or flag for HUE rules. They are presented by the following ZigBee Device ID and Thing type:

Device type ZigBee Device ID Thing type
Light Sensor 0x0106 0106
Occupancy Sensor 0x0107 0107
Temperature Sensor 0x0302 0302
Non-Colour Controller 0x0820 0820
Non-Colour Scene Controller 0x0830 0830
CLIP Generic Status Sensor 0x0840 0840
CLIP Generic Flag Sensor 0x0850 0850

The Hue Dimmer Switch has 4 buttons and registers as a Non-Colour Controller switch, while the Hue Tap (also 4 buttons) registers as a Non-Colour Scene Controller in accordance with the ZLL standard.

Also, Hue bridge support CLIP Generic Status Sensor and CLIP Generic Flag Sensor. These sensors save state for rules and calculate what actions to do. CLIP Sensor set or get by json through IP.

The type of a specific device can be found in the configuration section for things in the PaperUI. It is part of the unique thing id which could look like:

hue:0210:00178810d0dc:1

The thing type is the second string behind the first colon and in this example it is 0210.

Discovery

The Hue bridge is discovered through UPnP in the local network. Once it is added as a Thing, its authentication button (in the middle) needs to be pressed in order to authorize the binding to access it. Once the binding is authorized, it automatically reads all devices that are set up on the Hue bridge and puts them into the Inbox.

Thing Configuration

The Hue bridge requires the IP address as a configuration value in order for the binding to know where to access it. In the thing file, this looks e.g. like

Bridge hue:bridge:1 [ ipAddress="192.168.0.64" ]

A user to authenticate against the Hue bridge is automatically generated. Please note that the generated user name cannot be written automatically to the .thing file, and has to be set manually. The generated user name can be found in the log files after pressing the authentication button on the bridge. The user name can be set using the userName configuration value, e.g.:

Bridge hue:bridge:1 [ ipAddress="192.168.0.64", userName="qwertzuiopasdfghjklyxcvbnm1234" ]
Parameter Description
ipAddress Network address of the Hue bridge. Mandatory
port Port of the Hue bridge. Optional, default value is 80 or 443, derived from protocol, otherwise user-defined.
userName Name of a registered Hue bridge user, that allows to access the API. Mandatory
pollingInterval Seconds between fetching light values from the Hue bridge. Optional, the default value is 10 (min="1", step="1").
sensorPollingInterval Milliseconds between fetching sensor-values from the Hue bridge. A higher value means more delay for the sensor values, but a too low value can cause congestion on the bridge. Optional, the default value is 500 (min="50", step="1").

Devices

The devices are identified by the number that the Hue bridge assigns to them (also shown in the Hue App as an identifier). Thus, all it needs for manual configuration is this single value like

0210 bulb1 "Lamp 1" @ "Office" [ lightId="1" ]

or

0107 motion-sensor "Motion Sensor" @ "Entrance" [ sensorId="4" ]

You can freely choose the thing identifier (such as motion-sensor), its name (such as "Motion Sensor") and the location (such as "Entrance"). The name will then be used e.g. by Paper UI to show the item.

The following device types also have an optional configuration value to specify the fade time in milliseconds for the transition to a new state:

  • Dimmable Light
  • Dimmable Plug-in Unit
  • Colour Light
  • Extended Colour Light
  • Colour Temperature Light
Parameter Description
lightId Number of the device provided by the Hue bridge. Mandatory
fadetime Fade time in Milliseconds to a new state (min="0", step="100", default="400")

Channels

The devices support some of the following channels:

Channel Type ID Item Type Description Thing types supporting this channel
switch Switch This channel supports switching the device on and off. 0000, 0010
color Color This channel supports full color control with hue, saturation and brightness values. 0200, 0210
brightness Dimmer This channel supports adjusting the brightness value. Note that this is not available, if the color channel is supported. 0100, 0110, 0220
color_temperature Dimmer This channel supports adjusting the color temperature from cold (0%) to warm (100%). 0210, 0220
alert String This channel supports displaying alerts by flashing the bulb either once or multiple times. Valid values are: NONE, SELECT and LSELECT. 0000, 0100, 0200, 0210, 0220
effect Switch This channel supports color looping. 0200, 0210, 0220
dimmer_switch Number This channel shows which button was last pressed on the dimmer switch. 0820
illuminance Number:Illuminance This channel shows the current illuminance measured by the sensor. 0106
light_level Number This channel shows the current light level measured by the sensor. Advanced 0106
dark Switch This channel indicates whether the light level is below the darkness threshold or not. 0106
daylight Switch This channel indicates whether the light level is below the daylight threshold or not. 0106
presence Switch This channel indicates whether a motion is detected by the sensor or not. 0107
temperature Number:Temperature This channel shows the current temperature measured by the sensor. 0302
flag Switch This channel save flag state for a CLIP sensor. 0850
status Number This channel save status state for a CLIP sensor. 0840
last_updated DateTime This channel the date and time when the sensor was last updated. 0820, 0830, 0840, 0850, 0106, 0107, 0302
battery_level Number This channel shows the battery level. 0820, 0106, 0107, 0302
battery_low Switch This channel indicates whether the battery is low or not. 0820, 0106, 0107, 0302

Trigger Channels

The dimmer switch additionally supports a trigger channel.

Channel ID Description Thing types supporting this channel
dimmer_switch_event Event for dimmer switch pressed. 0820
tap_switch_event Event for tap switch pressed. 0830

The dimmer_switch_event can trigger one of the following events:

Button State Event
Button 1 (ON) INITIAL_PRESSED 1000
HOLD 1001
SHORT RELEASED 1002
LONG RELEASED 1003
Button 2 (DIM UP) INITIAL_PRESSED 2000
HOLD 2001
SHORT RELEASED 2002
LONG RELEASED 2003
Button 3 (DIM DOWN) INITIAL_PRESSED 3000
HOLD 3001
SHORT RELEASED 3002
LONG RELEASED 3003
Button 4 (OFF) INITIAL_PRESSED 4000
HOLD 4001
SHORT RELEASED 4002
LONG RELEASED 4003

The tap_switch_event can trigger one of the following events:

Button State Event
Button 1 Button 1 34
Button 2 Button 2 16
Button 3 Button 3 17
Button 4 Button 4 18

Rule Actions

This binding includes a rule action, which allows to change a light channel with a specific fading time from within rules. There is a separate instance for each light, which can be retrieved e.g. through

val hueActions = getActions("hue","hue:0210:00178810d0dc:1")

where the first parameter always has to be hue and the second is the full Thing UID of the light that should be used. Once this action instance is retrieved, you can invoke the fadingLightCommand(String channel, Command command, DecimalType fadeTime) method on it:

hueActions.fadingLightCommand("color", new PercentType(100), new DecimalType(1000))
Parameter Description
channel The following channels have fade time support: brightness, color, color_temperature, switch
command All commands supported by the channel can be used
fadeTime Fade time in Milliseconds to a new light value (min="0", step="100")

Full Example

In this example bulb1 is a standard Philips Hue bulb (LCT001) which supports color and color_temperature. Therefore it is a thing of type 0210. bulb2 is an OSRAM tunable white bulb (PAR16 50 TW) supporting color_temperature and so the type is 0220. And there is one Hue Motion Sensor (represented by three devices) and a Hue Dimmer Switch dimmer-switch with a Rule to trigger an action when a key has been pressed.

demo.things:

Bridge hue:bridge:1         "Hue Bridge"                    [ ipAddress="192.168.0.64" ] {
    0210 bulb1              "Lamp 1"        @ "Kitchen"     [ lightId="1" ]
    0220 bulb2              "Lamp 2"        @ "Kitchen"     [ lightId="2" ]
    0106 light-level-sensor "Light-Sensor"  @ "Entrance"    [ sensorId="3" ]
    0107 motion-sensor      "Motion-Sensor" @ "Entrance"    [ sensorId="4" ]
    0302 temperature-sensor "Temp-Sensor"   @ "Entrance"    [ sensorId="5" ]
    0820 dimmer-switch      "Dimmer-Switch" @ "Entrance"    [ sensorId="6" ]
}

demo.items:

// Bulb1
Switch  Light1_Toggle       { channel="hue:0210:1:bulb1:color" }
Dimmer  Light1_Dimmer       { channel="hue:0210:1:bulb1:color" }
Color   Light1_Color        { channel="hue:0210:1:bulb1:color" }
Dimmer  Light1_ColorTemp    { channel="hue:0210:1:bulb1:color_temperature" }
String  Light1_Alert        { channel="hue:0210:1:bulb1:alert" }
Switch  Light1_Effect       { channel="hue:0210:1:bulb1:effect" }

// Bulb2
Switch  Light2_Toggle       { channel="hue:0220:1:bulb2:brightness" }
Dimmer  Light2_Dimmer       { channel="hue:0220:1:bulb2:brightness" }
Dimmer  Light2_ColorTemp    { channel="hue:0220:1:bulb2:color_temperature" }

// Light Level Sensor
Number:Illuminance LightLevelSensorIlluminance { channel="hue:0106:1:light-level-sensor:illuminance" }

// Motion Sensor
Switch   MotionSensorPresence     { channel="hue:0107:1:motion-sensor:presence" }
DateTime MotionSensorLastUpdate   { channel="hue:0107:1:motion-sensor:last_updated" }
Number   MotionSensorBatteryLevel { channel="hue:0107:1:motion-sensor:battery_level" }
Switch   MotionSensorLowBattery   { channel="hue:0107:1:motion-sensor:battery_low" }

// Temperature Sensor
Number:Temperature TemperatureSensorTemperature { channel="hue:0302:temperature-sensor:temperature" }

Note: The bridge ID is in this example 1 but can be different in each system. Also, if you are doing all your configuration through files and do not use Paper UI and the Inbox, you may add the full bridge id to the channel definitions (e.g. channel="hue:0210:00178810d0dc:bulb1:color) instead of the short version (e.g. channel="hue:0210:1:bulb1:color) to prevent frequent discovery messages in the log file.

demo.sitemap:

sitemap demo label="Main Menu"
{
    Frame {
        // Bulb1
        Switch      item=       Light1_Toggle
        Slider      item=       Light1_Dimmer
        Colorpicker item=       Light1_Color
        Slider      item=       Light1_ColorTemp
        Switch      item=       Light1_Alert        mappings=[NONE="None", SELECT="Alert", LSELECT="Long Alert"]
        Switch      item=       Light1_Effect

        // Bulb2
        Switch      item=       Light2_Toggle
        Slider      item=       Light2_Dimmer
        Slider      item=       Light2_ColorTemp

        // Motion Sensor
        Switch item=MotionSensorPresence
        Text item=MotionSensorLastUpdate
        Text item=MotionSensorBatteryLevel
        Switch item=MotionSensorLowBattery
    }
}

Events

rule "example trigger rule"
when
   Channel "hue:0820:1:dimmer-switch:dimmer_switch_event" triggered <EVENT>
then
   ...
end

The optional <EVENT> represents one of the button events that are generated by the Hue Dimmer Switch. If ommited the rule gets triggered by any key action and you can determine the event that triggered it with the receivedEvent.getEvent() method. Be aware that the events have a '.0' attached to them, like 2001.0 or 34.0. So, testing for specific events looks like this:

if (receivedEvent.getEvent() == "1000.0")) {
    //do stuff
}
